ETCHR: Teaching Image Editors to Think Like Reasoners

Paper: 2605.23897 Authors: Beichen Zhang, Yuhong Liu, Jinsong Li, Yuhang Zang, Jiaqi Wang, Dahua Lin Categories: cs.CV, cs.AI, cs.CL

The Gap

Multimodal LLMs struggle with visual reasoning tasks that require fine-grained focus or view transformations—think counting overlapping objects, reading rotated text, or understanding 3D spatial relationships. Pure text chains-of-thought hit a wall because they can’t manipulate what they see. The “think with images” paradigm emerged as a fix: generate intermediate images to simplify the problem. But existing approaches split into two dead ends. Fixed toolkit methods (like VisProg) can only crop, rotate, or filter—they lack the flexibility to handle novel transformations. Unified multimodal methods (like Chameleon) generate images end-to-end but produce noisy, unreliable edits that hurt downstream reasoning.

This paper pursues a third path: decouple a dedicated image editor from the understanding model. But off-the-shelf editors fail as reasoning assistants. They exhibit a language-side gap (trained as passive instruction-followers, they can’t map “Which number is larger?” to “zoom in on the y-axis labels”) and a generation-side gap (edit quality degrades as reasoning chains deepen, compounding errors).

Problem: Visual reasoning bottleneck in MLLMs
    |
    v
Observation: Text CoT can't transform views
    |
    +---> Prior fix 1: Fixed toolkits ---> Too rigid
    |
    +---> Prior fix 2: Unified generation ---> Noisy edits
    |
    v
This paper's bet: Decoupled editor + reasoning-aware training
    |
    v
Two-stage training targets two gaps:
    Stage 1 (Reasoning Imitation) ---> Fixes language-side gap
    Stage 2 (Reasoning Enhancement) ---> Fixes generation-side gap
    |
    v
Evidence: +4-5 points across 5 task families, 3 MLLMs
    |
    v
Conclusion: Question-conditioned editing > passive editing

The Increment

One sentence: Before ETCHR, image editors were passive tools that followed instructions; after ETCHR, they became reasoning-aware agents that infer what visual transformation will clarify a question.

Core Mechanism

ETCHR is a question-conditioned image editor built on InstructPix2Pix. It takes three inputs: the original image, the question being asked, and an edit instruction. It outputs an edited image designed to make the question easier to answer. The key innovation is training the editor to understand reasoning context, not just follow generic editing commands.

Training happens in two stages. Stage 1 (Reasoning Imitation) uses supervised fine-tuning on edit trajectories—sequences of edits that progressively simplify reasoning problems. These trajectories come from GPT-4V, which the authors prompt to generate step-by-step visual transformations for complex questions. The editor learns to map abstract questions to concrete visual operations. Stage 2 (Reasoning Enhancement) uses reinforcement learning with two reward signals: edit correctness (does the edit match the intended transformation?) and downstream accuracy (does the edited image help the MLLM answer correctly?). This stage sharpens the editor’s ability to produce edits that actually improve reasoning outcomes.

Input: [Image] + [Question] + [Edit instruction]
    |
    v
+----------------------------------+
| Question-Conditioned Editor      |
| (InstructPix2Pix backbone)       |
|                                  |
| Stage 1: Reasoning Imitation     |
|   Learn from GPT-4V trajectories |
|   Question ---> Edit mapping     |
|                                  |
| Stage 2: Reasoning Enhancement   |
|   RL with dual rewards:          |
|   - Edit correctness             |
|   - Downstream accuracy          |
+----------------------------------+
    |
    v
Output: [Edited image] ---> Downstream MLLM ---> Answer

Think of ETCHR as a sous chef preparing ingredients for a head chef. The head chef (the MLLM) is skilled but works faster with pre-prepped ingredients. A regular sous chef (off-the-shelf editor) follows recipes mechanically: “dice the onions” means dice the onions, regardless of whether you’re making soup or salad. ETCHR is a sous chef who understands the final dish. When the head chef says “I’m making French onion soup,” ETCHR knows to caramelize the onions, not just dice them. Stage 1 training is like apprenticing under a master chef (GPT-4V), learning which prep techniques suit which dishes. Stage 2 is like getting feedback from diners—if the soup tastes better with thinner slices, adjust the technique. The editor learns not just how to cut, but what cut serves the reasoning goal.

Key Concepts

• Question-conditioned editing: Traditional image editors treat the edit instruction as the sole input—“rotate 90 degrees” or “increase contrast.” Question-conditioned editing adds the reasoning question as context. The editor learns that “rotate 90 degrees” serves different purposes depending on whether the question asks about text readability or spatial orientation. This conditioning allows the editor to infer implicit requirements. For example, given the question “What’s the trend in this chart?” and the instruction “zoom in,” the editor learns to zoom on the data region, not the legend. It’s the difference between a GPS that follows turn-by-turn directions and one that understands your destination and reroutes around traffic.

• Reasoning trajectory: A sequence of edits that progressively simplifies a complex visual reasoning problem. For instance, answering “Which slice is largest in this pie chart?” might involve: (1) increase contrast to distinguish colors, (2) zoom in on the chart, (3) add grid lines for comparison. Each edit reduces cognitive load for the downstream model. The trajectory is not arbitrary—it follows a logical decomposition of the reasoning task. ETCHR learns these trajectories from GPT-4V demonstrations, then generalizes to new questions. Think of it like a math teacher showing work: you don’t jump straight to the answer, you show intermediate steps that make the solution obvious.

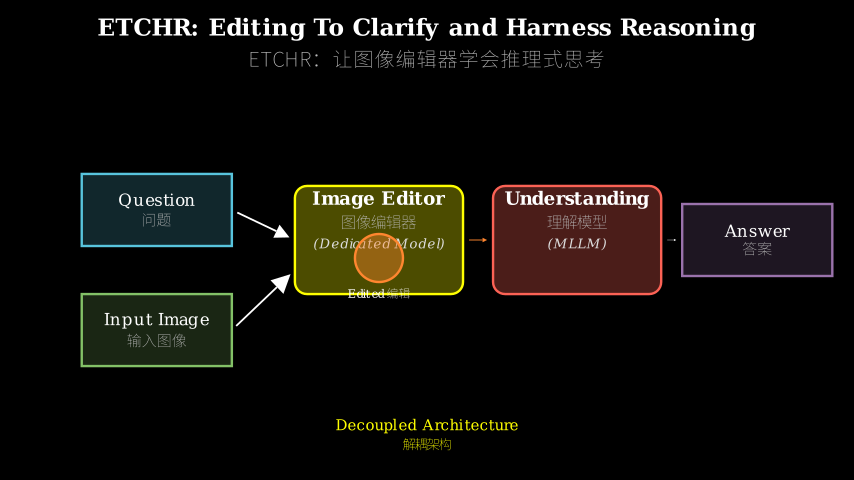

• Decoupled architecture: The editor and the understanding model are separate components with no shared parameters. This contrasts with unified approaches where a single model generates both edits and answers. Decoupling has two advantages. First, the editor can be trained independently and plugged into any MLLM without retraining the MLLM. Second, it avoids the “jack of all trades, master of none” problem—the editor specializes in visual transformation, the MLLM specializes in reasoning. The cost is an extra inference pass (edit, then understand), but the gain is modularity and quality. It’s like having a dedicated camera operator and a director, rather than one person trying to do both jobs.

Framework Shift

Before (mainstream approach):          After (this paper):

Question ---> MLLM ---> Answer         Question ---> ETCHR Editor
                                              |
  (MLLM struggles with                        v
   fine-grained visual                   Edited Image
   reasoning)                                  |
                                              v
                                          MLLM ---> Answer
         OR
                                       Key difference:
Question ---> Unified Model            - Editor is reasoning-aware
              (generate edit +         - Trained with RL on downstream
               answer together)          accuracy, not just edit quality
              |                        - Decoupled: plug into any MLLM
              v
         Noisy edits hurt
         reasoning

One sentence: From passive instruction-following editors to reasoning-aware editors that infer what transformation clarifies the question, the core shift is treating editing as a reasoning subtask, not a generic image manipulation task.

Expert Assessment

Problem choice: Real gap. The “think with images” paradigm is gaining traction (see Chameleon, ViperGPT), but the execution is messy. Fixed toolkits are too brittle for open-ended reasoning, and unified models sacrifice edit quality for end-to-end convenience. Decoupling is the obvious middle ground, but no one had systematically addressed why off-the-shelf editors fail at reasoning tasks. The two-gap framing (language-side and generation-side) is clean and well-motivated.

Method maturity: Solid engineering with one clever insight. The insight is using downstream reasoning accuracy as a reward signal during RL training—this directly optimizes for what matters, rather than proxy metrics like CLIP similarity. The two-stage recipe (imitation then enhancement) is standard but well-executed. The reliance on GPT-4V for trajectory generation is a practical choice, though it limits reproducibility and introduces a dependency on a closed model. The method is not groundbreaking, but it’s thoughtfully designed.

Experimental integrity: Strong. Five task families (fine-grained perception, chart understanding, logic reasoning, jigsaw restoration, 3D understanding) cover diverse reasoning modes. Three MLLMs (Qwen3-VL-8B, Gemini-3.1-Flash-Lite, Kimi K2.5) span open and closed, small and large. Consistent gains (+4-5 points) across all settings suggest the method is robust, not overfit to one benchmark. Ablations isolate the contribution of each training stage. One weakness: no comparison to training the MLLM itself on edited images (i.e., does the MLLM need to be frozen?). Also, the paper doesn’t report inference cost—running an editor before every MLLM call adds latency.

Writing quality: Clear structure, but the related work section is bloated with taxonomy. The method section front-loads motivation (the two gaps) before diving into architecture, which helps. The results section could use more error analysis—when does ETCHR fail? The paper would benefit from a failure case gallery showing where question-conditioned editing still struggles. The appendix has good qualitative examples, but they’re buried.

Verdict: Weak accept — Addresses a real problem with a well-executed solution and strong empirical results, but the method is incremental (better training recipe for an existing architecture) rather than a conceptual leap. The decoupled design is practical and the RL reward formulation is smart, but the reliance on GPT-4V for data generation and the lack of inference cost analysis are notable gaps.

Takeaways

For practitioners: If you’re building multimodal reasoning systems, consider decoupling your editor from your understanding model. Train the editor with task-specific rewards (downstream accuracy, not just edit quality). The two-stage recipe (imitation on expert trajectories, then RL with task rewards) is a transferable pattern for any tool-use scenario where off-the-shelf tools underperform.

For researchers: Question-conditioned generation is underexplored. Most conditional generation work conditions on class labels or text descriptions, but conditioning on reasoning context (the question being answered) opens new design space. The dual-reward RL setup (edit correctness + downstream accuracy) is a template for training any intermediate reasoning step.

Steal this: The idea of using a strong model (GPT-4V) to generate reasoning trajectories, then distilling them into a smaller specialist model. This is cheaper than end-to-end RL and more flexible than fixed toolkits. Apply it to other reasoning bottlenecks—code generation, retrieval, planning.
